CUSTOM SHELL & TUBE HEAT EXCHANGERS
Custom designs with fixed tubesheets or removable bundles. Units ranging from 5″ to 60″ Dia. Wide variety of materials of construction are available for specific needs. Designed to meet many code requirements including ASME, TEMA, ABS and China ML.
[/et_pb_text][/et_pb_column][et_pb_column type=”2_5″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_image _builder_version=”4.9.0″ _module_preset=”default” alt=”Standard Xchange” title_text=”standard-xchange” src=”https://tencarva.com/wp-content/uploads/standard-xchange.gif” hover_enabled=”0″ sticky_enabled=”0″][/et_pb_image][/et_pb_column][/et_pb_row][et_pb_row column_structure=”1_2,1_2″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_column type=”1_2″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_text _builder_version=”4.9.0″ _module_preset=”default”]As the recognized leader in heat exchanger products, systems and technology, Standard Xchange has been providing state-of-the-art solutions to heat transfer problems for more than 100 years. Today, the company is devoted exclusively to the design, engineering and manufacture of shell-and-tube, gasketed plate, brazed plate and air-cooled heat exchanger products. Standard Xchange heat exchangers are engineered and manufactured by experienced craftsmen who have been devoted to the science of heat transfer not just for years, but for generations. And because we offer such a wide assortment of different heat exchanger designs, we can assure you of getting the optimum heat transfer solution to your specific application, without bias toward any one particular (or proprietary) product line.
[/et_pb_text][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_text _builder_version=”4.9.0″ _module_preset=”default”]Standard Xchange heat exchangers are manufactured with the highest standards of quality.
Some of Standard Xchange’s code qualification options include:
- ISO 9001
- ASME Code
- Pressure Equipment Directive (97/23EC)
- China ML
- Korean KGS
- Brazilian NR-10

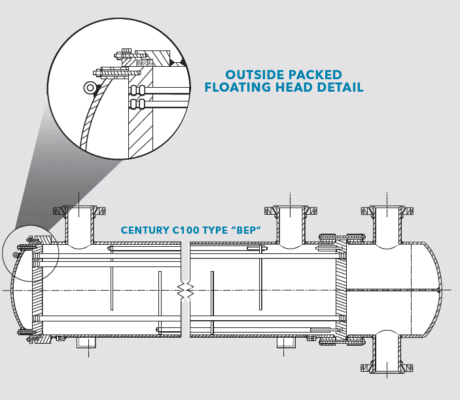

C100 – TEMA type AEP or BEP, removable bundle, outside packed floating head shell & tube heat exchanger

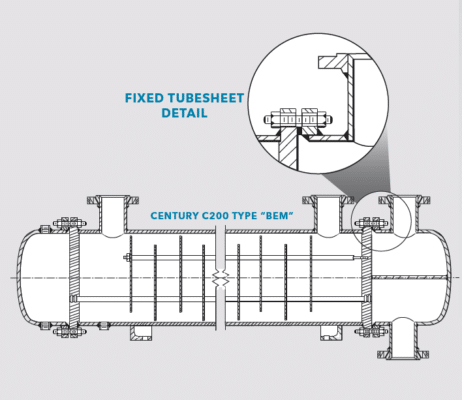

[/et_pb_text][/et_pb_column][et_pb_column type=”1_3″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_image src=”https://tencarva.com/wp-content/uploads/custom-shell-tube-c200.png” alt=” C200/C210 – TEMA type AEL/BEM or NEN fixed tubesheet shell & tube heat exchanger” title_text=”custom-shell-tube-c200″ url=”http://www.standard-xchange.com/custom-shell-tube/c200c210-fixed-tubesheet-shell-tube-heat-exchanger/” admin_label=” C200/C210 – TEMA type AEL/BEM or NEN fixed tubesheet shell & tube heat exchanger” _builder_version=”4.9.0″ _module_preset=”default”][/et_pb_image][et_pb_text _builder_version=”4.9.0″ _module_preset=”default” header_2_font=”|700||||on|||” header_2_text_align=”center” link_option_url=”http://www.standard-xchange.com/custom-shell-tube/c200c210-fixed-tubesheet-shell-tube-heat-exchanger/”]C200/C210 – TEMA type AEL/BEM or NEN fixed tubesheet shell & tube heat exchanger

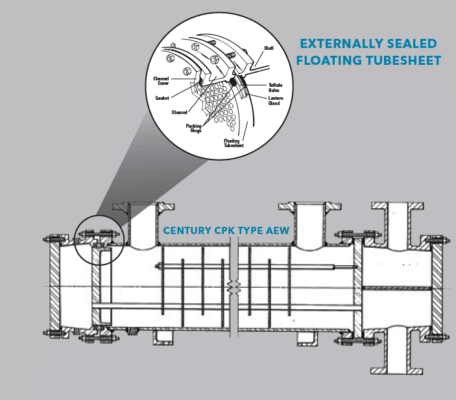

CPK – TEMA type AEW or BEW, removable bundle, packed floating tubesheet shell & tube heat exchanger

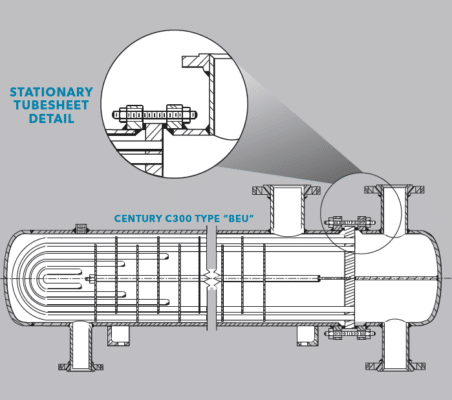

C300 – TEMA type AEU or BEU, removable U-tube bundle shell & tube heat exchanger

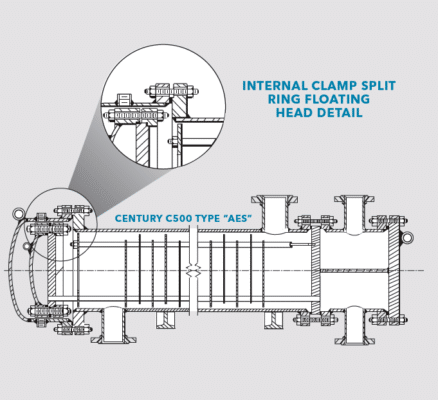

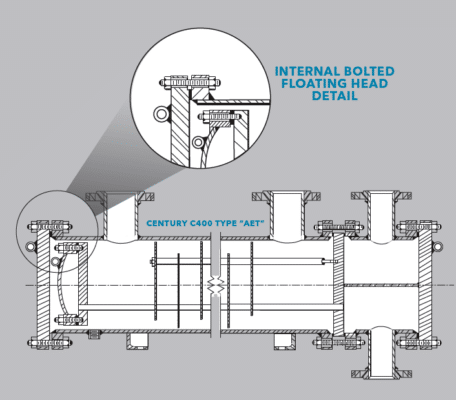

[/et_pb_text][/et_pb_column][et_pb_column type=”1_3″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_image src=”https://tencarva.com/wp-content/uploads/custom-shell-tube-c400.png” alt=”C400 – TEMA type AET or BET, removable bundle, internal bolted floating head cover shell & tube heat exchanger ” title_text=”custom-shell-tube-c400″ url=”http://www.standard-xchange.com/custom-shell-tube/c400-removable-bundle-internal-bolted-floating-head-cover-shell-tube-heat-exchanger/” admin_label=”C400 – TEMA type AET or BET, removable bundle, internal bolted floating head cover shell & tube heat exchanger ” _builder_version=”4.9.0″ _module_preset=”default”][/et_pb_image][et_pb_text _builder_version=”4.9.0″ _module_preset=”default” header_2_font=”|700||||on|||” header_2_text_align=”center” link_option_url=”http://www.standard-xchange.com/custom-shell-tube/c400-removable-bundle-internal-bolted-floating-head-cover-shell-tube-heat-exchanger/”]C500 – TEMA type AES or BES, removable bundle, internal clamp split ring, floating head shell & tube heat exchanger
CPK – TEMA type AEW or BEW, removable bundle, packed floating tubesheet shell & tube heat exchanger

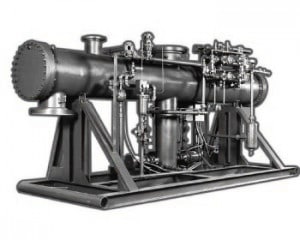

S1000R – single-bank, balanced-flow packaged Steam condensers
[/et_pb_text][/et_pb_column][et_pb_column type=”1_3″ _builder_version=”4.9.0″ _module_preset=”default”][/et_pb_column][et_pb_column type=”1_3″ _builder_version=”4.9.0″ _module_preset=”default”][/et_pb_column][/et_pb_row][et_pb_row disabled_on=”on|on|on” _builder_version=”4.9.0″ _module_preset=”default” disabled=”on”][et_pb_column type=”4_4″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_image src=”https://tencarva.com/wp-content/uploads/albin-pump-applications-1024×129.png” title_text=”albin-pump-applications” url=”https://www.albinpump.com/en-us/applications” _builder_version=”4.9.0″ _module_preset=”default”][/et_pb_image][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fb_built=”1″ _builder_version=”3.22″][et_pb_row column_structure=”1_2,1_2″ _builder_version=”3.25″ background_size=”initial” background_position=”top_left” background_repeat=”repeat”][et_pb_column type=”1_2″ _builder_version=”3.25″ custom_padding=”|||” custom_padding__hover=”|||”][et_pb_image src=”https://tencarva.com/wp-content/uploads/standard-xchange.gif” alt=”Standard Xchange” title_text=”standard-xchange” url=”https://goulds.com/” admin_label=”Logo” _builder_version=”4.9.0″ _module_preset=”default”][/et_pb_image][et_pb_text _builder_version=”4.9.0″ _module_preset=”default”]Standard-Xchange designs and manufactures heat exchanger products for the chemical, pulp and paper, biofuels, sugar processing, petroleum, power generation, mining and general industrial markets. From simple shell and tube heat exchangers, to sophisticated, precision-engineered custom heat exchangers, compact brazed plate or gasketed plate and frame units, packaged steam condensers to air-cooled exchangers, Standard-Xchange has whatever it takes to meet your heat transfer requirements.
[/et_pb_text][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”3.25″ custom_padding=”|||” custom_padding__hover=”|||”][et_pb_image src=”https://tencarva.com/wp-content/uploads/1_SX_100-Years_542x295-1.png” title_text=”1_SX_100-Years_542x295″ _builder_version=”4.9.0″ _module_preset=”default”][/et_pb_image][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fb_built=”1″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_row _builder_version=”4.9.0″ _module_preset=”default”][et_pb_column type=”4_4″ _builder_version=”4.9.0″ _module_preset=”default”][et_pb_text admin_label=”Standard Xchange Custom Shell & Tube Inquiry Form” _builder_version=”4.9.0″ background_size=”initial” background_position=”top_left” background_repeat=”repeat”]Standard Xchange Custom Shell & Tube Inquiry Form
Complete the following form, so we can help you with the best solution for your application. We’re at your service.
